The LED Reader: Continued...

Step 2b of 7: From the Edge Intensities, find all Edges in the image:

Vertical (V) edge intensities:

Horizontal (H) edge intensities:

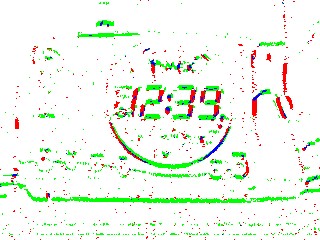

The Edges of the image:

Horizontal (H) edges are in Green,
Vertical (V) edges are in Red,
Blue means potentiall either H and/or V.

The reason that there are more edges on the right-hand image than either of the left is because the edges in the left-hand image are very, very light, so they don't show up very well.
