The LED Reader: Continued...
Step 6 of 7: Identify the Digit Candidates as Digits:

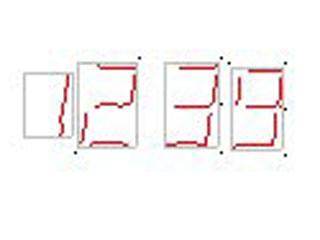

Close-up of the Digit Candidates:

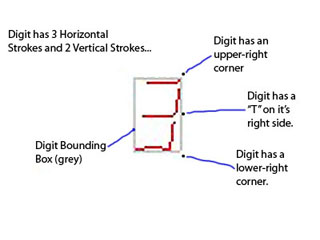

Close-Up of the "3" Digit:
The right-hand image shows the "drawing hints" we use to help determine what Digit a Digit Candidate is. Because the Digit Candidate above has the correct number of H and V strokes, connected in the right way, it's a "3" Digit.
"Conencted in the right way" means it has an upper-right corner, and a lower-right corner, and a T on it's right side.
